Container Shear
Horizontal Container Shear Machine
Compact and powerful container shear for metal recycling. Efficient top-feed design, centralized shearing force, and one-operator control. Ideal for mobile scrap processing.
Description
The Container Shear is a space-saving, high-performance metal cutting machine designed for processing scrap steel, light metal structures, and dismantled materials. It combines shearing and baling into one robust unit, making it ideal for recycling yards, demolition projects, and metal recovery operations.
Thanks to its horizontal design, centralized cutting force, and wear-resistant components, this shear machine delivers efficient, safe, and long-lasting operation — all while occupying minimal floor space.
Working Principle of Container Shear
Top Loading: Scrap materials are loaded from the top of the press box.
Automatic Pre-Compression: The internal compression system pushes materials down and forward.
Shearing: The powerful shear blade cuts materials cleanly under centralized force to reduce torsional stress.
Discharge: Cut scrap is pushed out from the front for collection or transport.
Features of Container Shear
- One-Man Operation: Easily load, shear, and unload with a single excavator operator.
- High Cutting Force: Capable of processing thick and heavy scrap with precision.
- Centralized Shearing: Blade force is directed to the center, reducing distortion and increasing cutting accuracy.
- Wear-Resistant Structure: Lined with Hardox or imported plates for longer service life and lower maintenance.
- Top Feed, Front Discharge: Scrap slides forward automatically for efficient processing.
- Compact & Mobile: Containerized design saves yard space and allows flexible on-site deployment.
- Cost-Efficient: Low energy use, minimal labor, and high output support sustainable metal recycling.

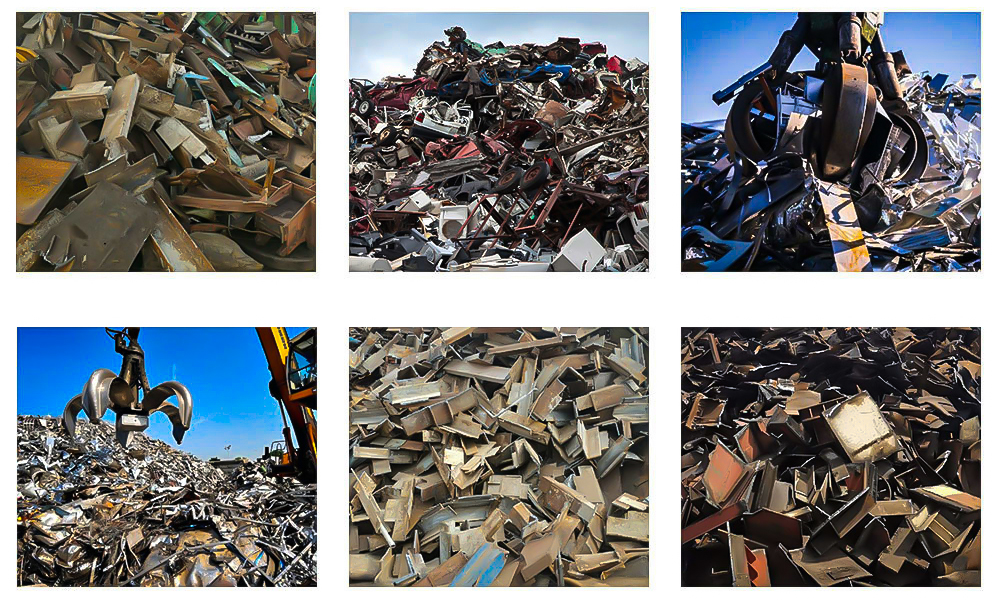

Applications of Container Shear
- Scrap Metal Recycling: Compress and cut steel, aluminum, copper, and more.
- Demolition Sites: Shear structural steel from dismantled buildings.
- Manufacturing Waste Handling: Manage and recycle offcuts and production scrap.
- Shipbreaking: Process ship hulls and other large metal parts into furnace-ready scrap.
Technical Parameter of Container Shear
| Model | Press Box Width (mm) | Shearing Length (mm) | Capacity (t/h) | Cutting force | Power |
|---|---|---|---|---|---|
| CS-3150 | 1000 | 300 | 3-6 | 315 T | 22kw*2 |
| CS-4000 | 1400 | 400 | 5-8 | 400 T | 37kw*2 |
| CS-5000 | 1400 | 400 | 7-10 | 500 T | 45kw*2 |
| CS-6300 | 1400/1600 | 400 or 500 | 8-15 | 630 T | 55kw*2 |
| CS-8000 | 1600 | 400 or 500 | 12-20/25(If cutting bales) | 800 T | 55kw*3 |
