Hydraulic Alligator Shear
Steel and metal cutting machine
Hydraulic alligator shear machine is used for cold cut various kinds of steel and metal , andprocessing the metals into qualified charging. The machine is suitable for metal recycling companies, waste steel factories, smelting foundry enterprises.
Description
Hydraulic alligator shears play an important role for metal recyclers by cutting things down to size – literally – enabling shredders to handle oversized materials that would otherwise be difficult or sometimes impossible to digest.
Hydraulic alligator shear machine is a pair of upper and lower alligator shearing structure. Shearing machine is driven by a hydraulic pump to form pressure. Under the control of the electromagnetic reversing valve and the oil circuit, oil cylinder can be lifted and contracted. Upper alligator and lower alligator fixed knife realize interactive shearing of the upper alligator knife and the lower alligator fixed knife under continuous pushing action of main oil cylinder to realize the interactive shearing of raw material entering incision.
Features of hydraulic alligator shear machine
- Adopt hydraulic drive. Compared with mechanical drive shearer , it’s small inertia, low noise, stable action, agile operation, and big section of cutting.
- Adopt the hydraulic and electric integration to control. It can realize changing of single and continual working, and start or stop at the arbitrary working location. It also can realize overload protection easily.
- Apply to metal-reclaim companies, smelting and foundry plants, and machinery industry.
Technical parameter of hydraulic alligator shear

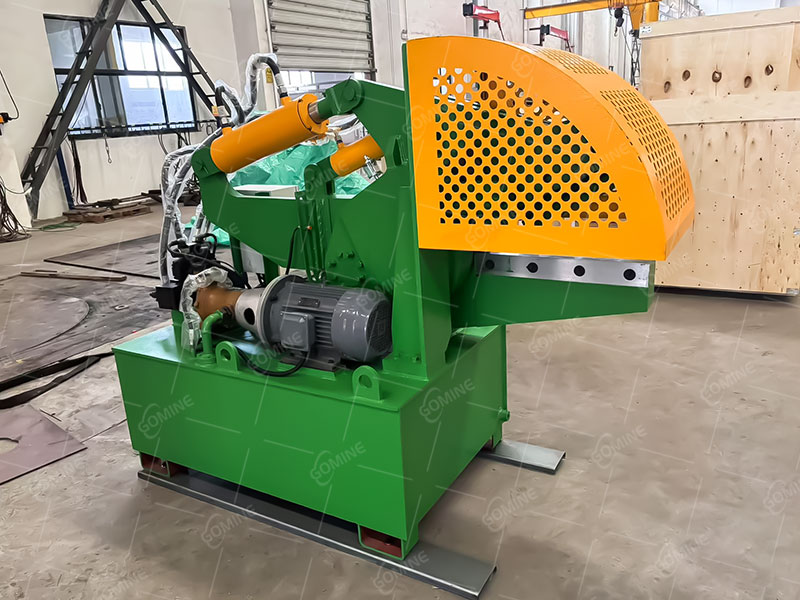

Small hydraulic alligator shear:
| Model | Blade length (mm) | Shear Pressure (kN) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| HC43-15 | 300 | 60 | 3 | 550 |
| HC43-25 | 300 | 250 | 5.5 | 750 |
| HC43-63 | 400 | 630 | 7.5 | 1000 |
Industrial hydraulic metal shearing machine:
| Model | Max shear Force (t) | Max Holding Force (t) | Blade length (mm) | Max Blade Opening (mm) | Shear Frequency (time/min) | Power (kW) |
|---|---|---|---|---|---|---|
| HC43-60 | 6 | / | 300 | 160 | 10 | 3 |
| HC43-250 | 25 | / | 300 | 150 | 10 | 5.5 |
| HC43-630 | 63 | 16 | 600 | 280 | 9-16 | 7.5 |
| HC43-1000 | 100 | 16 | 600 | 280 | 9-16 | 11 |
| HC43-1200 | 120 | 20 | 600 | 280 | 9-16 | 15 |
| HC43-1600 | 160 | 25 | 700 | 320 | 9-16 | 18.5 |
| HC43-2000 | 200 | 25 | 800 | 380 | 9-16 | 22 |
| HC43-2500 | 250 | 26 | 1000 | 480 | 9-16 | 30 |
| HC43-3150 | 315 | 42 | 1200 | 520 | 8-16 | 37 |
| HC43-4000 | 400 | 42 | 1500 | 700 | 8-16 | 44 |
| HC43-5000 | 500 | 42 | 1800 | 900 | 8-16 | 44 |
