GM-T500 Copper Wire Granulator
The GM-T500 Copper Wire Granulator is used to crush waste wires and cables and separate them into copper granules and plastic insulation, thereby recovering pure copper.
The GM-T500 Copper Wire Granulator is an automatic waste wire and cable recycling system that efficiently separates and purifies copper from plastic, and uses dust collection components to recover pure copper granules while meeting environmental production requirements.
The GM-T500 Copper Wire Granulator is suitable for processing various types of waste wires and cables as well as mixed cable materials, including:
- Residential Wiring Scrap
- Communication Cables
- Automotive Wire Harnesses
- Computer Data Cables
- Power Cords
By processing these scrap copper-core wires and cables—which vary in diameter, specifications, and insulation types (such as plastic or rubber)—the system achieves a complete separation of the copper from the insulating layers.
Working Process of GM-T500 Copper Wire Granulator
- Feeding and Crushing: Waste wires are first conveyed into the main unit via a feeding conveyor, where they are crushed into granules.
- Dispersion and Classification: The crushed material is uniformly dispersed by a spreader and a rotating drum, then fed into a vibrating screen for classification.
- Gravity Separation: Driven by a shaking table and bottom-blown airflow, the copper granules are preliminarily separated from the plastic based on differences in specific gravity and airflow dynamics.
- Electrostatic Purification: The separated material undergoes further purification via electrostatic separation to recover any residual trace amounts of copper powder.
- Dust Removal: Throughout the entire process, a dust collection system—comprising dust collectors, negative-pressure suction, and airlocks—operates continuously to capture airborne dust and prevent environmental pollution.
- Iron Removal: An iron removal device extracts any ferromagnetic impurities mixed within the material.
- Recycling and Reprocessing: Recycled streams 1 and 2 return any incompletely separated material back to the production line for further processing.

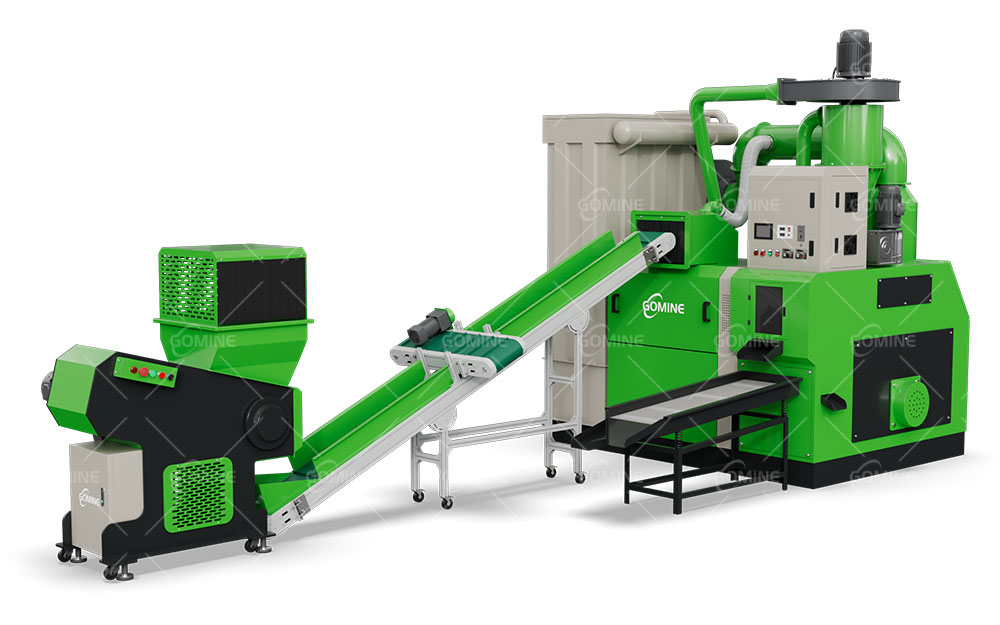

GM-D350 Single Shaft Shredder + GM-T500 Copper Wire Granulation Line
Features of GM-T500 Copper Wire Granulator:
- High Automation: Features PLC control, one-touch start/stop functionality, and built-in delay protection for simple and user-friendly operation.
- High Separation Purity: Employs a combination of airflow shaking tables and electrostatic separation to achieve copper purity exceeding 99%.
- Eco-friendly and Pollution-free: Utilizes a dry physical separation process that requires no water and generates no wastewater; equipped with a dust removal system to effectively control dust emissions.
- Wide Applicability: Suitable for processing a diverse range of scrap wires, including local telephone lines, mixed cables, automotive wiring, and appliance cords; select models are capable of processing copper wires with thin insulation layers.
- Intelligent Monitoring: Features real-time current monitoring, fault alarms, and I/O monitoring to facilitate easy maintenance.
Technical Parameter of GM-T500 Copper Wire Granulator
| Model | GM-T500 |
| Capacity | 300-400KG/h |
| Total Power | 34.15 KW |
| Crusher Motor Power | 22 KW |
| Dimensions | (L)2880x(W)2030x(H)2950mm |
| Weight | 2000 KG |
