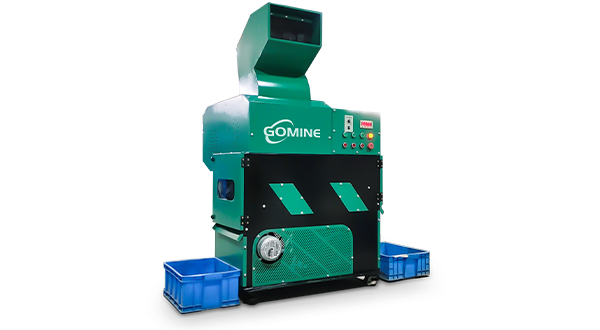

GM-S08 Copper Wire Granulator
Single-phase or Three-phase Electricity
The capacity of our GM-S08 copper wire granulator is 80~120kg/h, which can meet the needs of most customers. The process range is 0.1~30mm, 99.9% separation rate.
Description

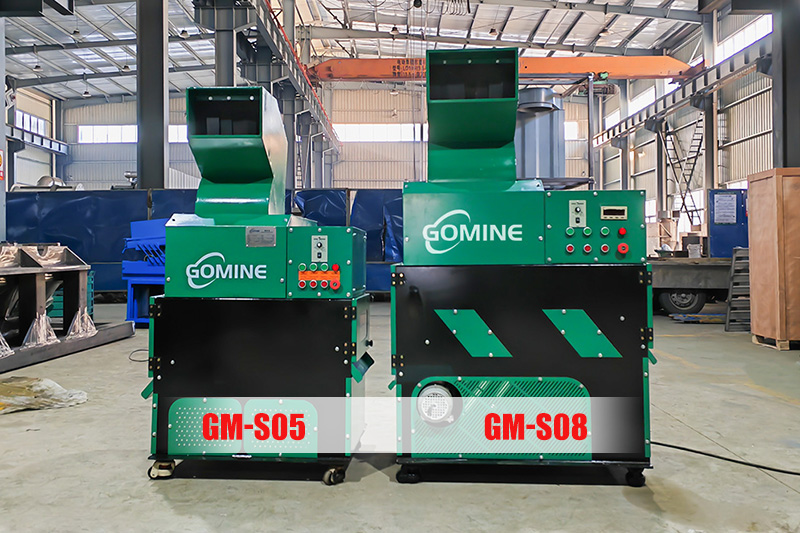

GM-S08 copper wire granulator is an upgraded version of our GM-S05 small copper wire granulator. It is a small to medium-sized machine that is ideal for businesses and individuals who generate smaller amounts of copper wire and cable scrap. It is typically used in recycling plants, scrap yards, and other facilities that specialize in metal recycling.
The capacity of our GM-S08 copper wire granulator is 80~120kg/h, and processing range is 0~30mm. Among machines with the same capacity, GM-S08 has a smaller size, so it occupies a smaller production site. The machine is equipped with universal wheels, which is more convenient to move.
Copper Cable Recycling Line (GM-S08 + GM-B300)
In addition to being used alone, the GM-S08 copper wire granulator machine can also be used with our B series cable shredder machine as a copper wire recycling line. GM-B300 small shredder machine can be used as a primary cable shredder; When the output material passes through the conveyor belt, the iron in the material will be removed by the iron remover; The remaining materials will be sent to the S08 copper wire granulator machine for further shredding, and eventually separate the copper and plastic. Copper wire recycling lines are more efficient.
Feeding Materials

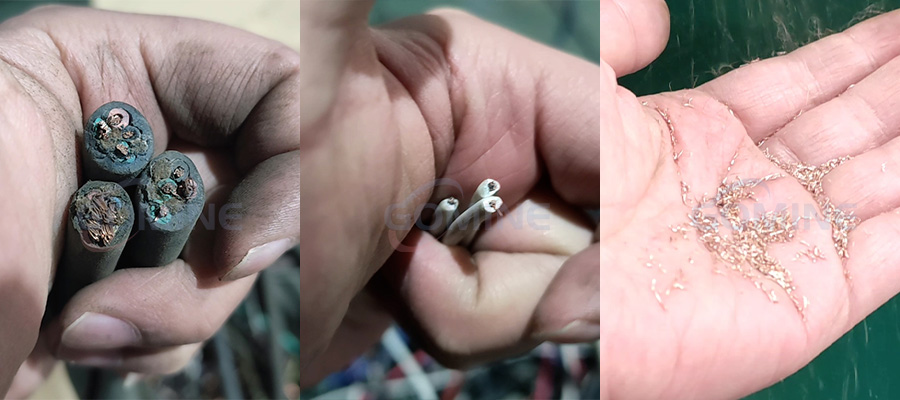

The GM-S08 copper wire granulator can process all kinds of waste wires, such as automotive wires, appliance dismantling wires, telephone lines, network cables, data cables, building wires, etc.
After Processing
After being crushed into fine particles, the waste electrical wires are separated by a built-in airflow separator. The final copper particles will have a purity of over 99.9%. These separated copper and plastic particles can then be further recycled.
Related videos
We will conduct a trial run of the machine before shipment, according to the customer’s requirements.
Advantages of GM-S08 copper wire granulator
- Equipped with universal wheels for easy movement.
- Overload alarm, more intelligent. When feeding too much, the machine will alarm.
- Support single-phase power and three-phase power. Most of medium-sized copper wire recycling machines use three-phase power supply, if you need a single-phase power supply equipment, this will be your best choice.
Technical parameter of Gomine cable recycling machines
| Model | Capacity | Size | Power |
|---|---|---|---|
| GM-S03 | 30-40kg/h | 840*555*1520mm | 3.9KW |
| GM-S05 | 50-70kg/h | 870*820*1520mm | 3.9KW |
| GM-S08 | 80-120kg/h | 1020*870*1660mm | 5.9KW |
| GM-S15 | 120-150kg/h | 1370*1120*1980mm | 8.5KW |
| GMC400 | 150-200kg/h | 1480*1400*2000mm | 16.17KW |
| GMC500 | 200-300kg/h | 2700*1800*2000mm | 22.74KW |
| GMT500 | 300-400kg/h | 2880*2030*2950mm | 34.15 KW |
| GMC600 | 300-500kg/h | 3600*2000*2200mm | 42KW |
| GMC800 | 500-700kg/h | 4400*2100*2500mm | 60KW |
| GMC1000 | 900-1100kg/h | 8000*6100*2250mm | 78KW |
| GMC1500 | 1200-1800kg/h | 20000*2200*5200cm | 216KW |
GM-S08 copper wire granulator is an efficient and cost-effective machine to recycle scrap copper wire and cables. It helps reduce waste and pollution while providing a valuable source of raw materials for the manufacturing industry.
