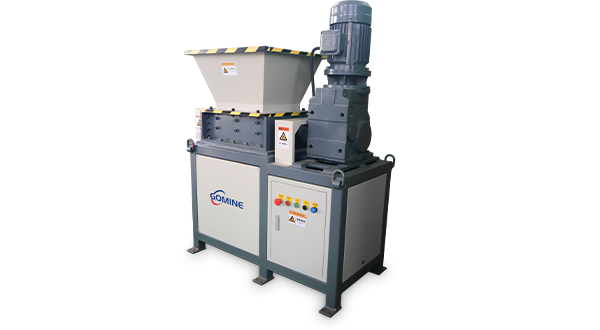

Mini Shredder Machine

Mini Shredder Machine

Gomine B series shredder machine is a small size shredding equipments, it's suitable for crushing various solid wastes.

Double shaft shredder is designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. This mini shredder machine is control by PLC automatic control system, which has start, stop, reverse and automatic reverse in overload condition.

Applications of GM B series mini shredder machine
Applications of GM B series mini shredder machine

Features of B series mini shredder machine

  • 1. Low noise, less dust with high capacity.
  • 2. Special thick plate precision machining combination frame, large angle hexagonal column of the strong rotation axis, large diameter solid into the hopper, so you can safely put into large raw materials.
  • 3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, shear strong,sharp blade, can be highly efficient broken.
  • 4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.
  • 5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.

Technical parameter of B series mini shredder machine

ModelGM-B300GM-B400
Motor3KW-4, 1 set4KW-4, 1 set
ReducerJL2#-16, 1 setJL3#-12, 1set
Input speed16 r/min12 r/min
Input torque1628Nm2919Nm
Input shaft diameterΦ50Φ60
Blade size & materialΦ180*12, 9CrSiΦ180*15,9CrSi
Number of blades24pcs26pcs
Feeding port size (mm)500*500*300600*500*300
Weight400kg500kg

We are experts in the field of solid waste recycling especially metal recycling. We can provide a complete set of solutions, including waste cable recycling, waste circuit board recycling, metal and non-metal crushing and sorting, mixed plastic recycling, etc. If you have any need of our machine, feel free to contact Gomine Machinery.
