Waste Cable Recycling Machine
Waste cable recycling machine is used to recycle and process various types of cables and wires, such as communication cables, power cables, and electronic cables. The machine is designed to separate the copper or aluminum from the plastic insulation that surrounds the wire. This process allows the copper or aluminum to be reused, reducing the need for new mining and production of these metals, and reducing the amount of waste that ends up in landfills.
Commonly used waste cable recycling equipments include scrap cable shredders, industrial stripping machines, copper kable granulators, etc.
Scrap Cable Granulator & Separator
Copper kable granulator is designed to process scrap copper wires and cables into small granules for recycling. The machine uses a combination of cutting, crushing, and separation technologies to separate the copper from the plastic insulation of the wires and cables. This results in clean copper granules that can be sold to a variety of industries for use in new products.
The copper kabel granulator typically consists of a feeding conveyor, a copper wire shredder machine, a conveyor belt, and a separation system. The feeding conveyor is used to feed the copper wire and cables into the machine, while the copper shredder machine shreds the wires and cables into small pieces. The conveyor belt then moves the shredded material to the separation system, which separates the copper from the plastic insulation.
» Small capacity copper wire granulator
The capacity of small copper wire granulator machine is usually within 150 kg per hour, and the power supply can be single-phase or three-phase, which is more suitable for small recycling yards or home use. Our small copper cable granulator machine is equipped with universal wheels, which is more convenient to move.

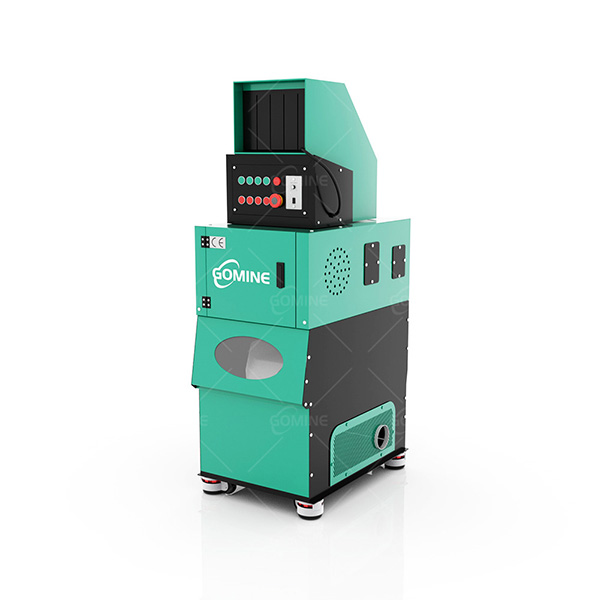

GM-S03 Mini Copper Granulator
Capacity: 30-40kg/h
Feeding Range: 0~25mm
Machine Size: 840*555*1520mm
Weight: 274kg
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
Feeding Range: 0~25mm
Machine Size: 840*555*1520mm
Weight: 274kg
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
GM-S05 Small Copper Granulator
Capacity: 50-70kg/h
Feeding Range: 0~30mm
Machine Size: 870*820*1520mm
Weight: 280kg
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
Feeding Range: 0~30mm
Machine Size: 870*820*1520mm
Weight: 280kg
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
GM-S08 Copper Wire Granulator
Capacity: 80-120kg/h
Feeding Range: 0~30mm
Machine Size: 1020*870*1660mm
Weight: 384kg
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
Feeding Range: 0~30mm
Machine Size: 1020*870*1660mm
Weight: 384kg
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
GM-S15 Copper Cable Granulator
Capacity: 120-150kg/h
Feeding Range: 0~30mm
Machine Size: 1370*1120*1980mm
Power: 8.5kw
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
Feeding Range: 0~30mm
Machine Size: 1370*1120*1980mm
Power: 8.5kw
Voltage: 110V/220V/Customized
Power Supply: Single-phase/three-phase electricity
» Medium capacity copper wire granulator
Medium capacity cable recycling machine is designed to process and separate copper or aluminum from waste cables in quantities that suit medium-sized recycling businesses or facilities. It’s a balanced solution between small-scale manual systems and large industrial plants.
GMC400 Copper Wire Granulator
Capacity: 150-200kg/h
Feeding Range: 0~30mm
Machine Size: 1480*1400*2000mm
Power: 16.17kW
Voltage: 220V/380V/Customized
Feeding Range: 0~30mm
Machine Size: 1480*1400*2000mm
Power: 16.17kW
Voltage: 220V/380V/Customized
GMC500 Copper Wire Granulator
Capacity: 200-300kg/h
Feeding Range: 0~30mm
Machine Size: 2700*1800*2000mm
Power: 22.74kW
Voltage: 220V/380V/Customized
Feeding Range: 0~30mm
Machine Size: 2700*1800*2000mm
Power: 22.74kW
Voltage: 220V/380V/Customized
GM-T500 Copper Wire Granulator
Capacity: 300-400kg/h
Feeding Range: 0~30mm
Machine Size: 2880*2030*2950mm
Power: 34.15kW
Voltage: 220V/380V/Customized
Feeding Range: 0~30mm
Machine Size: 2880*2030*2950mm
Power: 34.15kW
Voltage: 220V/380V/Customized
Wet Type Copper Wire Granulator
Capacity: 100-400kg/h
Feeding Range: 0~30mm
Voltage: 220V/380V/Customized
Feeding Range: 0~30mm
Voltage: 220V/380V/Customized
» Large capacity copper cable granulator
The capacity of GMC600 waste cable recycling machine is 300-400kg/h, and it's most used in medium-sized recycling plants. Our GMC series waste wire recycling equipment can achieve a maximum output of 1000kg/h. The whole equipment includes crushing, conveying, gravity separating, and PLC control system and other parts.
GMC600 Cable Recycling Machine
Capacity: 300-500kg/h
Feeding Range: 0~30mm
Machine Size: 3600*2000*2200mm
Power: 42kw
Voltage: 380V 50Hz/Customized
Feeding Range: 0~30mm
Machine Size: 3600*2000*2200mm
Power: 42kw
Voltage: 380V 50Hz/Customized
GMC1500 Container-type Cable Recycling Plant
Capacity: 1200-1800kg/h
Machine Size: 20*2.2*5.2m
Power: 216kw
Voltage: 380V 50Hz/Customized
Machine Size: 20*2.2*5.2m
Power: 216kw
Voltage: 380V 50Hz/Customized
» Customized waste cable recycling plant
Waste cable recycling machines come in different sizes and configurations, depending on the specific requirements of the application. They can be either manual or fully automated. In addition to the standard configuration, we can configure other equipment according to customer needs, such as: waste cable shredder(used as primary crushing), iron remover, electrostatic separator, etc.
As a professional recycling equipment manufacturer, we have rich experience in the field of waste wire recycling, and we have resonable copper wire granulator price. If you are looking for copper wire granulator for sale, or you have any questions about waste cable recycling, please feel free to contact us, we will get in touch with you within 24 hours.
Cable/Wire Stripping Machine
Cable stripping machine is an essential solution for efficiently recycling and processing waste wires and cables. Designed for precision and durability, it quickly removes insulation from various types of cables, including copper wires, aluminum wires, and multi-core cables, ensuring maximum recovery of valuable metal materials.
For thicker multi-core cables, it is usually necessary to configure a wire stripping machine for pretreatment before using the copper wire granulator machine for recycling.
As a key piece of equipment in cable recycling lines, the cable stripping machine helps businesses reduce costs, enhance resource utilization, and contribute to a more sustainable and profitable recycling process.
