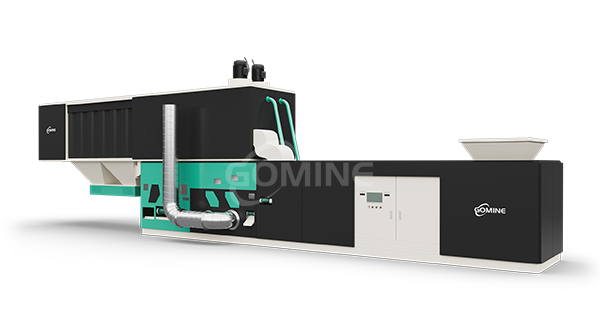

GMC1500 Container-type Cable Wire Recycling Plant

Big Capacity Waste Cable Recycling Plant

GMC1500 container-type cable wire recycling plant can be used for recycling copper wire or aluminum wire. This plant is housed within shipping containers for easy transport, setup, and relocation.

info@gominerecycling.com

+86-15638898079

Get a free quote

Description

GMC1500 container-type cable wire recycling plant is our patented product. The entire system is highly integrated and requires only two containers; it includes crushing, iron removal, dust removal, sorting and other parts. No factory building is required, covering an area of 202.25.2 meters, and the output capacity can reach 1.2-1.8 tons per hour.

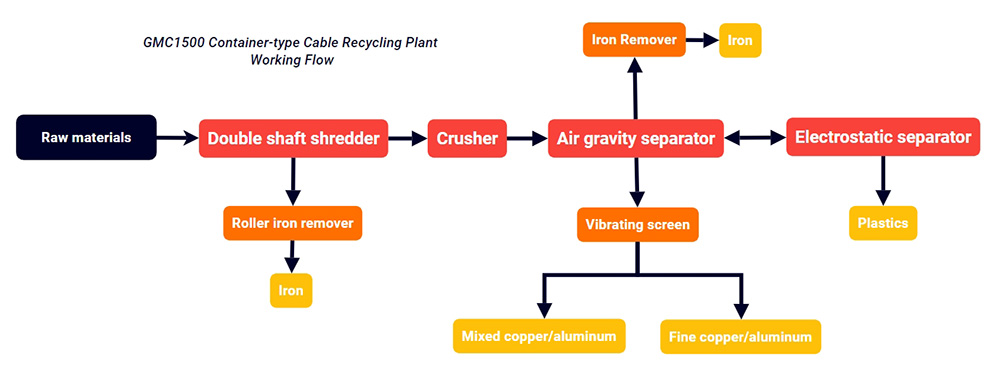

The process of copper wire granulation involves feeding the wire into the machine, which then chops it into small pieces. The chopped wire is then fed into a separator, which uses air flow to separate the copper from the plastic insulation. The copper is collected and can be sold for scrap, while the plastic is typically disposed of.

Feeding Materials

GMC1500 container-type cable wire recycling plant can process all kinds of waste wires, such as high voltage power cables, automotive wires, appliance dismantling wires, building wires, etc.

After Processing

After being crushed into fine particles, the waste electrical wires are separated by a built-in airflow separator. The final copper particles will have a purity of over 99.9%. These separated copper and plastic particles can then be further recycled.

Features of GMC1500 container-type cable wire recycling plant

• High output, no heat, output is 1.2-1.8 tons per hour.
• It occupies a small area and does not need to build a factory. It only needs to put 2 containers. Compared with similar products, it saves more than 100 square meters of land.
• The entire equipment has a sound insulation and sound reduction device, and the noise is below 100 decibels.
• Save labor, only 2 people are needed to operate.
• Use automated technology to replace tools, which is convenient and fast, and is usually completed within 30 minutes.
• The tool has a long service life and is usually sharpened once every 5 days.
• The whole machine adopts negative pressure vacuum suction and feeding, no dust.
• Simple operation, PLC control system.
• The pipeline is automatically cleaned, no manual cleaning of the pipeline is required.
• Long service life, the crusher and pulverizer are produced using all finishing methods, spindle heat treatment, etc.

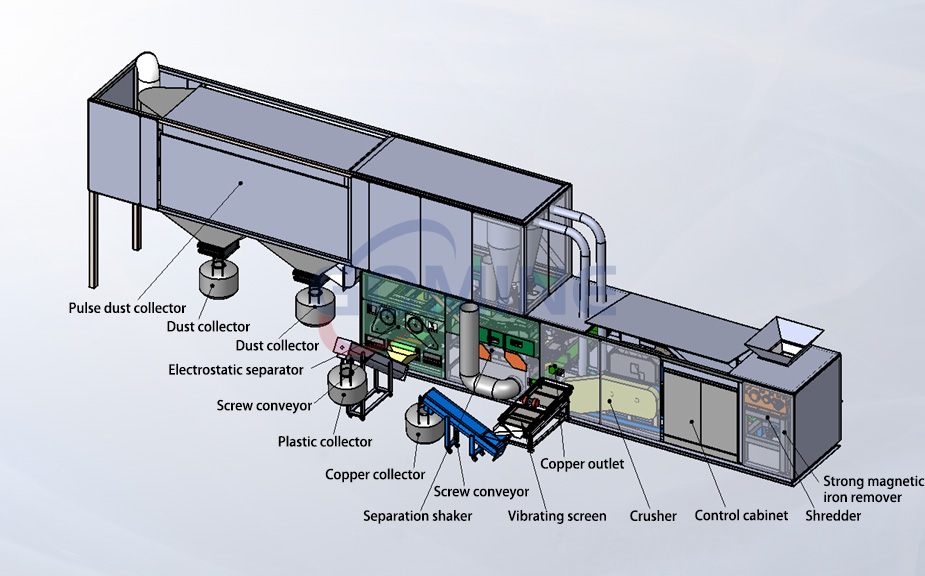

Structure of GMC1500 container-type cable wire recycling plant

Container-type copper wire granulator machines are particularly suitable for small to medium-scale operations, remote locations, or temporary recycling projects where portability and flexibility are paramount. They offer a convenient and efficient solution for businesses or organizations looking to recycle copper wire and reduce waste.

Technical parameter of Gomine cable recycling machines
