GM-S05 Small Copper Wire Granulator
Cheap Price Mini Cable Granulator
GM-S05 small copper wire granulator is a mini size scrap cable recycling equipment, it is powered by single phase, very good choice for small business and wholesale.
Description
Gomine S05 small copper wire granulator machine is an excellent scrap copper wire recycling machine. Waste copper cables can be separated into pure copper particles & plastic particles. 99.9% separation rate.
This small copper wire granulator machine is mainly used for process copper and aluminum wires, such as household wires, industrial wires, automotive wires,etc. The process range is 0.1~30mm, and the process capacity is 60 ~ 80kg/h.
Feeding Materials
The GM-S03 copper wire granulator can process all kinds of waste wires, such as automotive wires, appliance dismantling wires, telephone lines, network cables, data cables, building wires, etc.
After Processing
After being crushed into fine particles, the waste electrical wires are separated by a built-in airflow separator. The final copper particles will have a purity of over 99.9%. These separated copper and plastic particles can then be further recycled.
Related videos
We will conduct a trial run of the machine before shipment, according to the customer’s requirements.

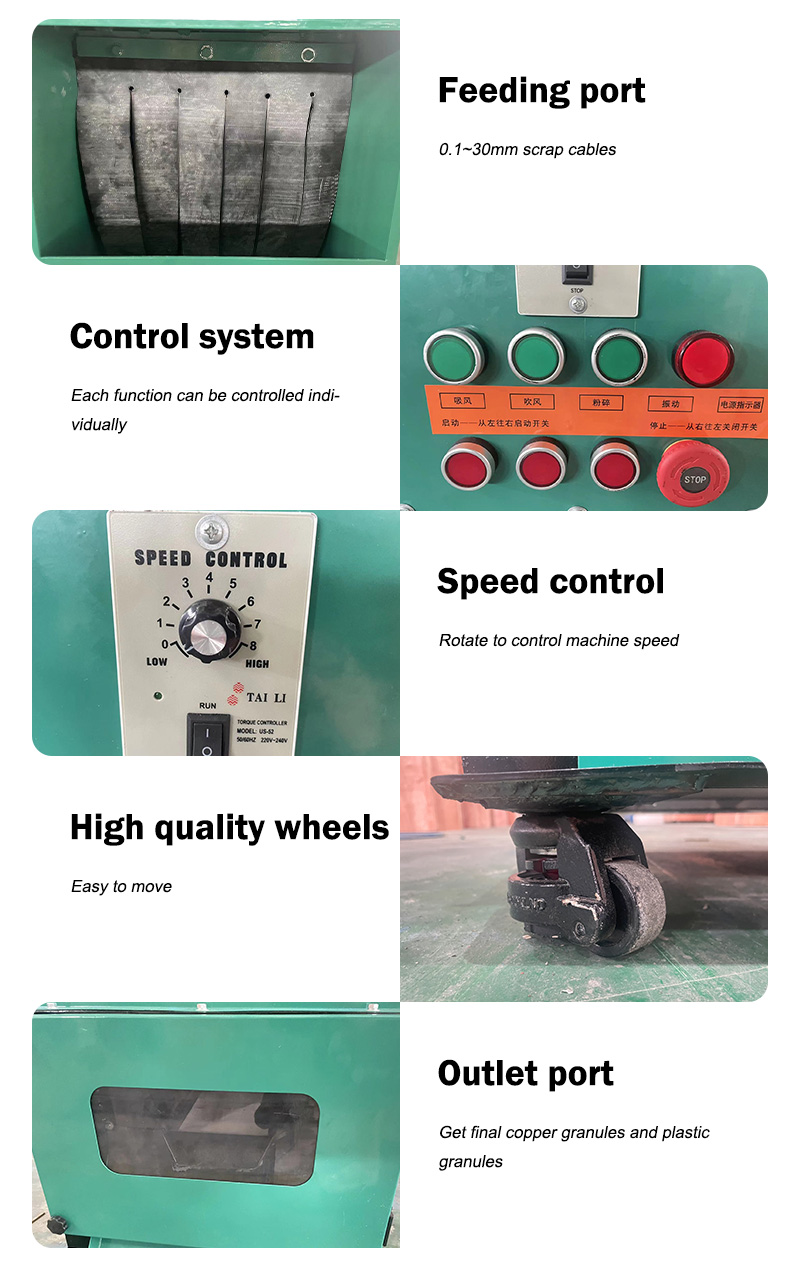

Working process of GM-S05 mini copper wire granulator
- Put the scrap cable into feeding hole to go crusher
- Get the mixed copper and plastic granules after crushing
- Through the air separator system and vibrator system get the pure copper granules and plastic granules.
Mini copper wire granulator cost
This small copper wire granulator machine is almost the cheapest copper wire recycling machine you can buy in the market, but it has all the functions of crushing and sorting. The best choice for small waste wire recycling stations, as well as start-up recycling companies.
Technical parameter of Gomine cable recycling machines
| Model | Capacity | Size | Power |
|---|---|---|---|
| GM-S03 | 30-40kg/h | 840*555*1520mm | 3.9KW |
| GM-S05 | 50-70kg/h | 870*820*1520mm | 3.9KW |
| GM-S08 | 80-120kg/h | 1020*870*1660mm | 5.9KW |
| GM-S15 | 120-150kg/h | 1370*1120*1980mm | 8.5KW |
| GMC400 | 150-200kg/h | 1480*1400*2000mm | 16.17KW |
| GMC500 | 200-300kg/h | 2700*1800*2000mm | 22.74KW |
| GMT500 | 300-400kg/h | 2880*2030*2950mm | 34.15 KW |
| GMC600 | 300-500kg/h | 3600*2000*2200mm | 42KW |
| GMC800 | 500-700kg/h | 4400*2100*2500mm | 60KW |
| GMC1000 | 900-1100kg/h | 8000*6100*2250mm | 78KW |
| GMC1500 | 1200-1800kg/h | 20000*2200*5200cm | 216KW |
When choosing a mini copper wire granulator, it is important to consider the size of the machine, the amount of wire you need to process, and the type of wire you will be processing. It is also important to choose a reputable manufacturer to ensure that you get a high-quality machine that will last for years to come.
