Benchtop Mini Metal Lathe

Benchtop Mini Metal Lathe

The Mini Lathe is one of our best selling products, always representing top value for money and an excellent introduction to metal turning. The compact size means it's ideal for bench mounting in places like a home workshop.

The GM-0618 Benchtop mini metal lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.

GM-0618 precision mini metal lathe is designed to perform various types of metal turning. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works. The precision mini lathe is perfect for the hobbyist or modeler who is looking to add finite detail to their construction project. Whether you’re turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge! With 18 threads, automatic feed and a chuck guard with micro switch, this mini lathe is ideal for use in labs, workshops, engineering and educational settings.

Advantages of GM-0618 small metal lathe machine

1. Emergency shutdown, Worry free about security risks.
2. Telescopic sets with scale for precise control.
3. Variable speed from 100 to 2500 RPM.
4. Equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation.
5. Four-way rotary turret for four-way ordinary turning.
6. Accurate operation and professional performance.

Mini benchtop metal lathe details

mini metal lathe detail 1

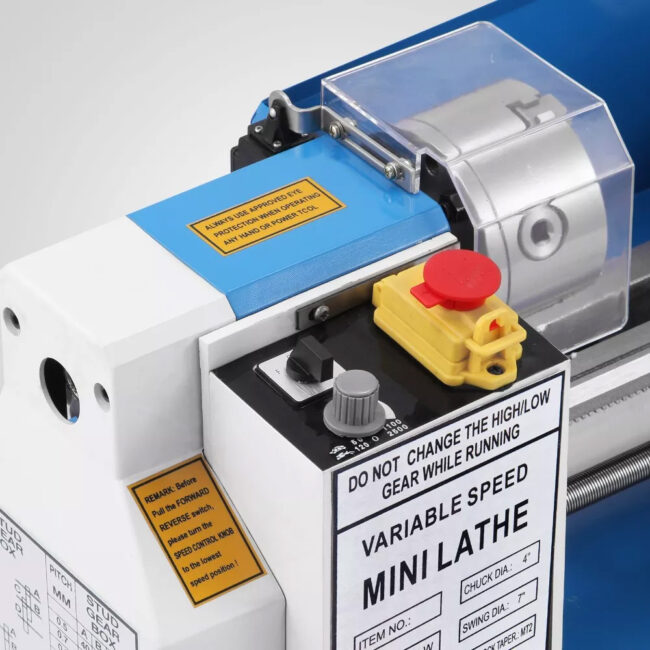

Infinitely Variable Speeds

Variable speed from 0-2500 Rpm. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate.
The feed speed can be adjusted according to the requirements of different workpieces.

mini metal lathe detail 2

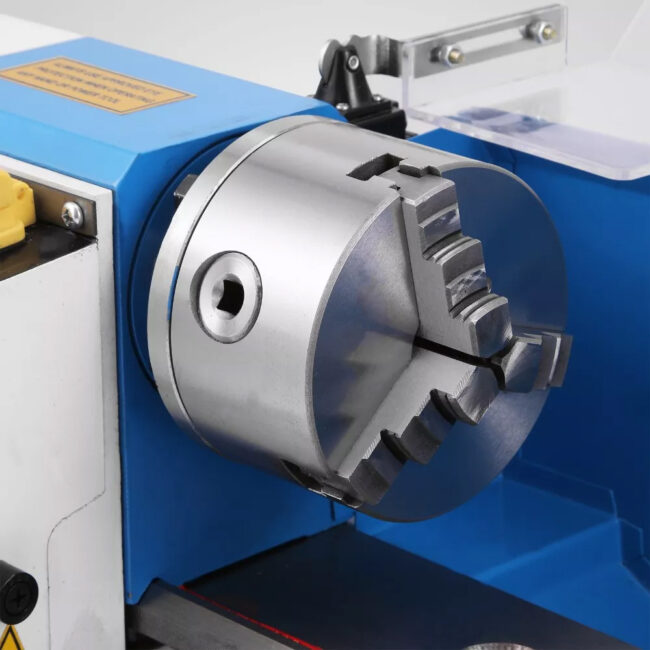

High Accuracy Chuck

3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard
included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.

mini metal lathe detail 3

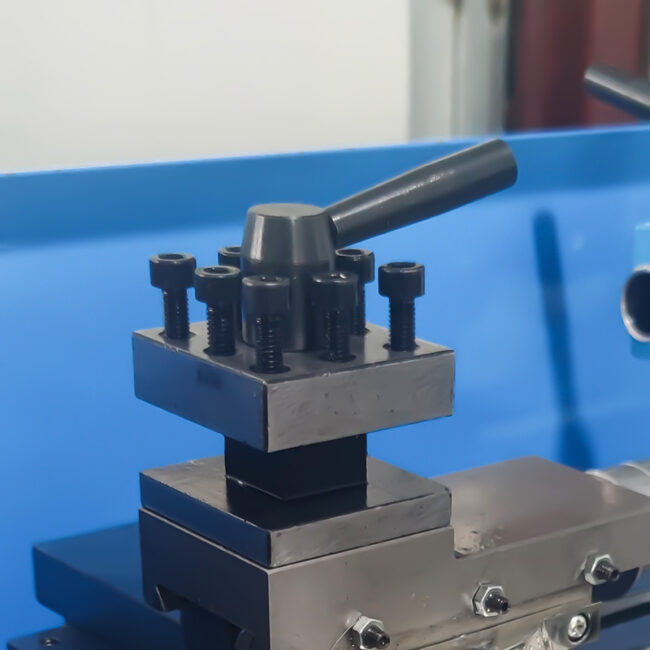

Four-way Tool Post

T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by
adjusting the angle of the compound rest with the lever.

mini metal lathe detail 4

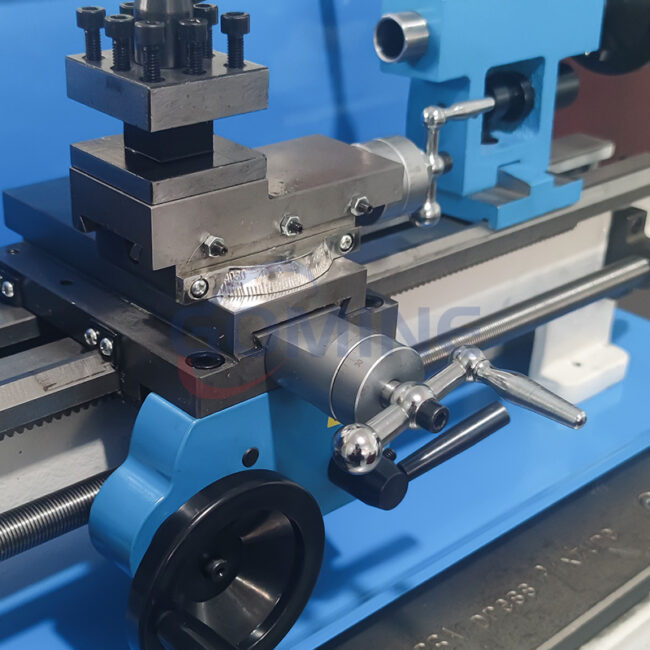

Professional Cross Slide

Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance
between center: 350mm(13.78″).

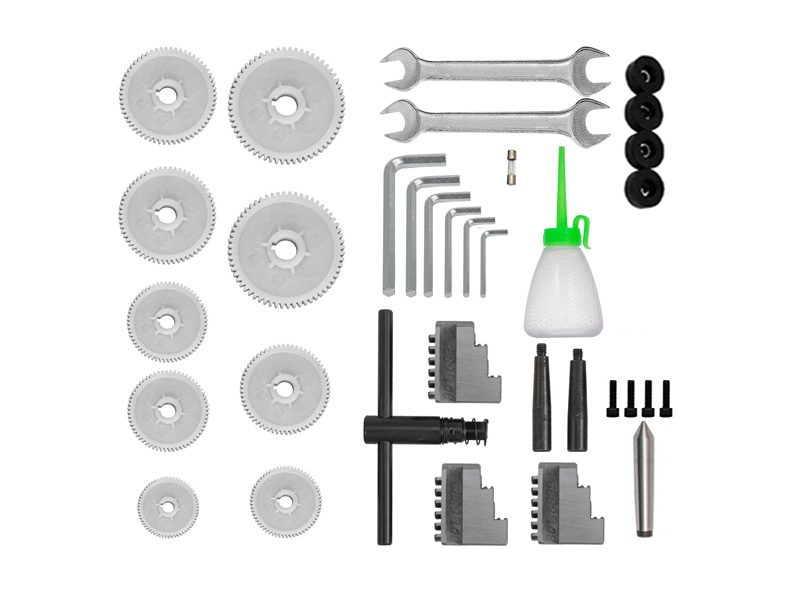

Accessories of GM-0618 mini metal lathe

Technical parameters of GM-0618 mini metal lathe

Benchtop Mini Metal Lathe Machine
Distance between centers 350MM
Swing over bed 180MM
Taper of spindle bore MT3
Spindle bore 20MM
Step of spindle speeds Variable speed
Range of spindle speeds 50-2500rpm
Range of inch threads 12-52 T.P.I
Range of metric threads 0.5-2.5MM
Travel of cross slide 65MM
Taper of tailstock quill MT2
Main motor 550W
Packaging size 810X310X370MM
N.W. 40KGS
G.W. 45KGS
