Integrated Copper Cable Granulator

Integrated Copper Cable Granulator

Best choice for small scale recycling business

Different from the common copper wire granulator, the crushing part, sorting part, dust removal part, and control part of the integrated copper cable machine are all designed in a whole.

Why using copper cable recycling machine?

In the scrap metal recycling industry,copper is the metal that generates the most revenue for scrap yards. Copper’s high ductility, or ability to be formed into wire, makes it valuable in a way that many metals are not.

bare copper wire

But like so many metals recyclers, end-stage copper that arrives at the yard needs a little work before it’s ready to be sold and put back into use. That’s where copper wire granulators come in. The working process of the copper wire granulator machine is roughly divided into 3 main parts:

1. Feeding:

The granulator starts with scrap copper wire, almost all of which will be insulated. When you’re dealing in high volume scrap wires, you can trust the granulator to do the work. You’ll simply feed the wiring, insulation and all, into the granulator. Using a belt conveyor to feed will make it much more efficient.

2. Shredding:

Once scrap wires or cables are fed in, the cable granulator will get to work. Scrap cables will be chopped into plastic pieces and copper granules.

Our integrated copper cable granulator is used for recycling automotive wires, communication cables and other types of miscellaneous wires and cables. The diameter of feeding scrap cables can below 20mm. For single conductor with diameter of 0.3-20mm, the machine performs best.

3. Separation:

Now comes the work of separating the valuable copper from the plastic waste. This is an important step, with bad quality machines, recyclers could lose nearly 15 percent of their copper to being incorrectly sorted as waste. That’s tantamount to throwing money away. But no worries, the copper recycling rate of our copper wire granulator machine is no less than 99%, which can guarantee the quality of copper.

This integrated copper cable granulator is dry type, after air and vibration separation, copper granules come out of the front outlet and plastics out of the back outlet. Dust is sent to dust collector via air duct.

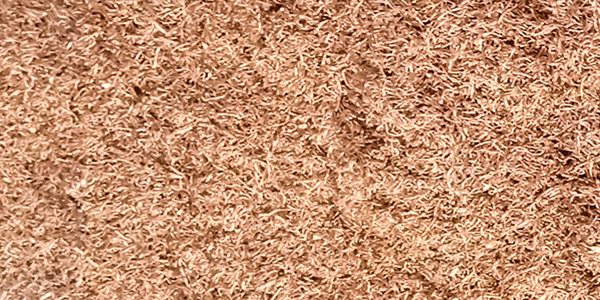

copper granules

Integrated copper wire granulator is used for recycling automotive wires, communication cables and other types of miscellaneous wires and cables. The diameter of feeding scrap cables can below 20mm. For single conductor with diameter of 0.3-20mm, the machine performs best. Integrated copper wire granulator is suitable for homemade and small scale recycling business.

GMC-400 Waste Copper Cable Granulator Recycling Machine Running Video

Features of integrated copper cable granulator

This copper wire granulator adopt one-piece structure design, which makes it small occupied area, easy to use and move. It can works as soon as the power on on the flat ground.

  • Integrated structure, small dimensions, easy to move, saving space.
  • Low power consumption, stable performance.
  • Minimum copper recycling rate can reach 99%. If you want to further sorting, our electrostatic separator can be further sorted.
  • No water is needed, no dust, no environmental pollution.
  • Controlled by electricity control panel, highly automatic.
  • The voltage can be customized as per your requirements.

Technical parameter of copper wire granulator

ModelDimension (mm)Crusher (kw)Air conveying (kw)Wind sorting (kw)Dust Collection (kw)Output (kg/h)Weight(kg)
GMC-4002000*1850*260015N/A0.75+220.75100-1501800
GMC-6004200*1900*38003733.752.2300-4003500
GMC-10005180*2100*42004543.753800-10004600

We are experts in the field of solid waste recycling especially metal recycling. We can provide a complete set of solutions, including waste cable recycling, waste circuit board recycling, metal and non-metal crushing and sorting, mixed plastic recycling, etc. If you have any need of our machine, feel free to contact Gomine Machiney.
