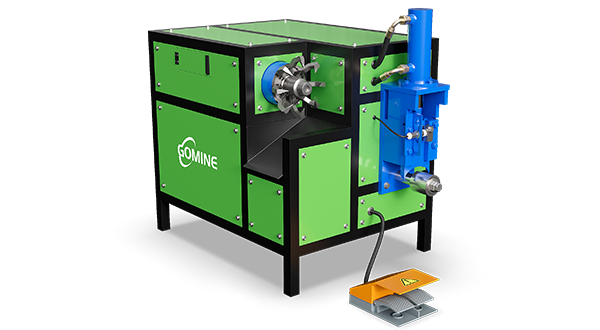

Motor Stator Recycling Machine
Motor Stator Winding Dismantling Machine
It is ideal for dismantling stator coils with a thickness under 7 cm and inner diameter over 4 cm, and outer diameter under 12.5 cm.
The Motor Stator Recycling Machine is specially designed for extracting copper from small motor stators. It is ideal for dismantling stator coils with a thickness under 7 cm and inner diameter over 4 cm, and outer diameter under 12.5 cm. The machine features a laser-cut adjustable cutting blade and an 8-jaw pulling mechanism, ensuring precision and safety during operation.
It is widely used in motor recycling facilities, e-waste processing plants, and copper recovery stations.

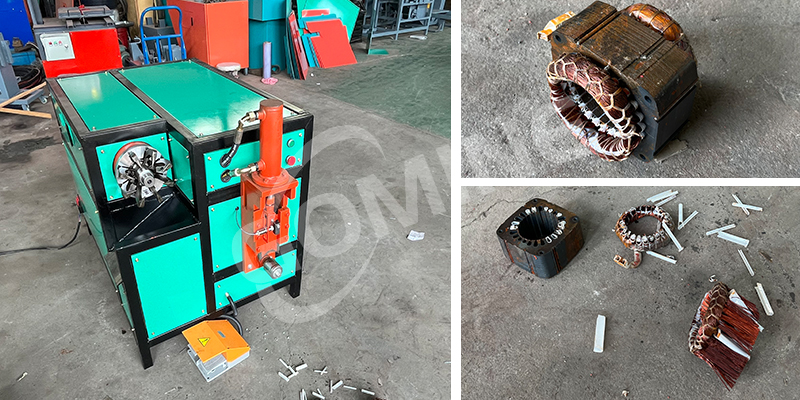

Working Process of Motor Stator Recycling Machine
1. Place the stator: Secure the motor stator onto the work platform.
2. Adjust blade position: Use the adjustable blade to match the coil thickness.
3. Cut the stator coil slots: The laser-cut blade slices open the copper winding area.
4. Pull out copper: The 8-jaw mechanism grips the coil and pulls out the copper wire.
5. Ready for next cycle: The stator is removed, and the next one can be processed.
Motor Stator Recycling Machine is Suitable for:
- Small to medium-size stators
- Copper coil bundles (within size limits)
- Scrap motors from appliances, tools, etc.
Features of Motor Stator Recycling Machine
Adjustable Laser-Cut Blade
Blade position can be fine-tuned to match different stator sizes.
8-Jaw Pulling System
Handles stators with inner diameter > 4cm and outer coil diameter < 12.5cm.
The claws adjust automatically to fit tightly and extract copper efficiently.
Compact and Easy to Use
Small footprint, user-friendly controls — perfect for small workshops.
High Safety Standards
Fully enclosed design, adjustable grip strength, and controlled pulling ensure operator safety.
High Copper Recovery
Clean separation means minimal damage to copper, increasing recycling value.
Specification of Motor Stator Recycling Machine
| Model | Power | Size | Weight |
| GM-M6 | 3Kw | 114*93*169cm | 264KG |
We are experts in the field of solid waste recycling especially metal recycling. We can provide a complete set of solutions, including waste cable recycling, waste circuit board recycling, metal and non-metal crushing and sorting, mixed plastic recycling, etc. If you have any need of our machine, feel free to contact Gomine Machinery.
